SMC150全自动锯切钻铣中心

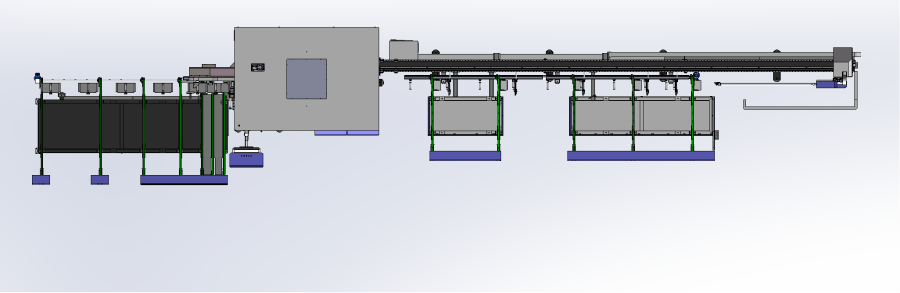

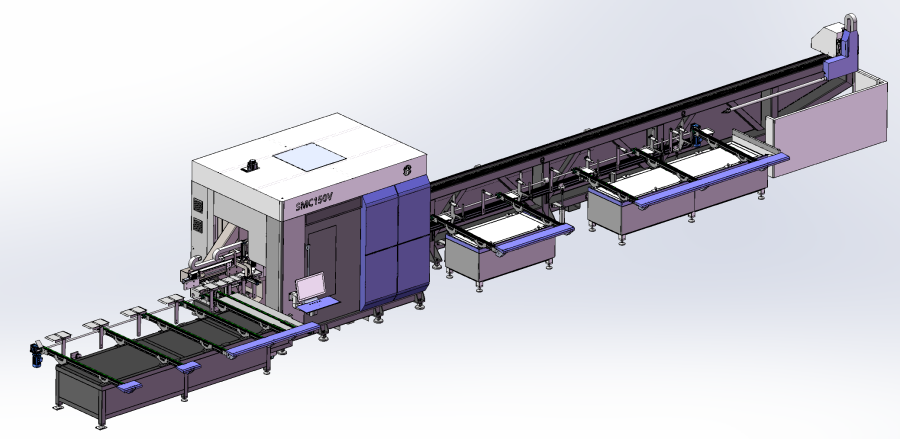

（图片仅供参考，外观及尺寸以实际出厂设备为准。）
Equipment features:
(1) High efficiency: a single equipment produces 150-200 cubic meters per day;
(2) Intelligent: fully automatic production and processing, seamless connection of order system (ERP);
(3) Cost saving: intelligent optimization of blanking, saving aluminum;
(4) Labor saving: one person can complete 150-200 cubic meters per day;
(5) Multi-functional: corner code hole, key hole, sawing angle, and coding are automatically completed;
(6) Large range: the maximum processing size is 150x150mm;
(7) More storage materials: automatic production and processing of 8 materials;
(8) High precision: servo feeding precise positioning, high-precision sawing angle;
(9) Simplicity: Configure material optimization function, and the self-developed system is simple and easy to operate.
Expandable: Customized blanking and sorting manipulator, complete sets of doors and windows sorting and placement.
Device configuration checklist
Name | Brand |
Machine tools, mechanical platforms and accessories | Jinspire |
Reducer (including gear) | MOTOREDUCER |
Machine tool accessories | Jinspire |
Control software | Jinspire |
AC servo motors and drives | Inovance |
Electrical control | Schneider |
Pneumatic components | Airtac |
Scrap recovery units | Jinspire |
Exhaust duct system | Jinspire |
Blanking table (standard blanking 4.5 m part) | Jinspire |
Concentrate:
1. If the customer purchases the above device, the customer must purchase the specified brand and model; If the brand is changed arbitrarily, the customer is responsible for the impact on the performance of the whole machine.
